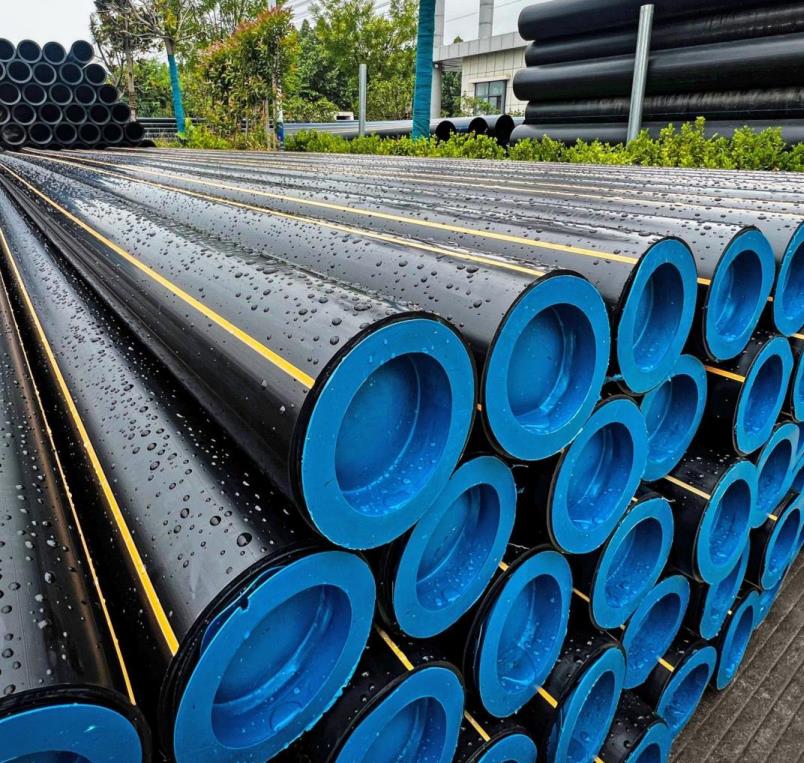

GAS HDPE pipeline adopts PE100 grade gas specific high-density polyethylene raw material, which is formed by professional extrusion process and strictly follows the national gas pipeline standards. It is designed for the transportation of urban natural gas, liquefied petroleum gas, biogas and other gases, and is an ideal pipe material to replace traditional metal gas pipes. The pipe material is hygienic, non-toxic, and stable, ensuring the safety of gas transmission from the source. It can be buried for a long time without polluting the transmission medium.
The pipeline has core advantages such as reliable connection, corrosion resistance, low temperature resistance, and strong flexibility. It adopts hot melt and electric melt connection, and the joint strength is higher than that of the pipe body, achieving zero leakage throughout the system; Resistant to soil corrosion and chemical media erosion, no need for anti-corrosion treatment, resistant to impact and non brittle cracking in low temperature environments, able to adapt to uneven settlement of foundations, with a service life of over 50 years. At the same time, the pipe material is lightweight, easy to transport and construct, and can be laid without excavation, greatly reducing the overall cost of the project.
GAS HDPE pipes are widely used in urban gas pipeline networks, residential gas supply, industrial park gas transmission, rural coal to gas conversion projects, etc. The diameter coverage is comprehensive, and the pressure resistance level matches the needs of different scenarios. With the characteristics of safety, stability, reliable operation, and low operation and maintenance costs, it has become the mainstream choice of pipe materials for modern gas transmission and distribution systems.
Excellent air tightness, safe and reliable gas transportation
Special gas-grade HDPE raw material, low gas permeability; integrated hot-melt and electric-fusion connection, zero leakage at the interface;
Comply with GB/T 15820, ISO 4437, EN 1555, ASTM D2513
Resistant to chemical corrosion, suitable for complex biogas media
Resistant to hydrogen sulfide, condensed water, acid and alkali, and microbial corrosion, does not rust or scale, and is suitable for corrosive components of biogas;
Comply with ISO 4433, ASTM D1693, EN 12573
High toughness, impact resistance, settlement resistance and earthquake resistance
Elongation at break ≥800%, excellent flexibility, adaptable to uneven foundation settlement, geological deformation, and earthquake conditions;
Comply with ISO 13479, EN 1046, GB/T 19472
Resistant to rapid crack growth, high explosion-proof safety level
Special PE100 grade raw material, resistant to slow crack growth and rapid cracking, meeting the explosion-proof safety requirements of gas systems;
Complies with ISO 13476, DVS 2207, EN 12814
Smooth inner wall with low friction and high conveying efficiency
The inner wall roughness is ≤0.007mm, and the air flow resistance is small, which reduces transportation energy consumption and reduces impurity deposition;
Comply with ISO 10838, AWWA M55
Stable in wide temperature range, strong environmental adaptability
Long-term use temperature-40℃～40℃, resistant to high and low temperature alternating, suitable for municipal, rural biogas and field laying;
Comply with ASTM F714, GB/T 18252
Insulation and anti-static to avoid the risk of explosion
Non-metallic insulating material, anti-static surface to prevent static sparks from igniting gas and biogas;
Comply with IEC 60079, GB 12476, NFPA 77
Stable pressure-bearing performance and complete pressure levels
SDR11 and SDR17.6 have complete specifications and are suitable for medium and low pressure gas and biogas pressure transportation;
Comply with ISO 4427, GB/T 13663.2
Convenient construction and suitable for trenchless laying
It can be coiled, directional drilled and dragged for construction, with a small bending radius and few joints, which greatly reduces the risk of construction leakage;
Comply with GB 50268, ISO 10460
Long service life and low operation and maintenance costs
The underground design service life is ≥50 years, no anti-corrosion maintenance is required, and it is suitable for long-term gas and biogas gas supply systems;
Comply with GB 50235, AWWA C906
